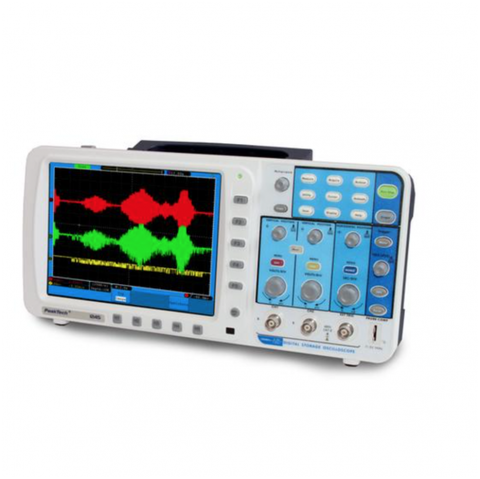

Skaitmeninis osciloskopas 2x100 MHz

 Naujausios kartos dviejų kanalų skaitmeninis osciloskopas turi:

-Didelės skyros spalvotas ekranas ir foninis apšvietimas;

-Didelė vidinė duomenų atmintis

-VGA išėjimas išoriniam monitoriui prijungti

-LAN ryšys nuotolinei prieigai per tinklą

-USB prievadas duomenų perdavimui realiu laiku arba vidinės atminties skaitymui

-Automatinio nustatymo ir automatinio mastelio funkcijos patogios naudoti vartotojui

-20 automatinių matavimo režimų ir FFT funkcija

-PASS / FAIL funkcija

Includes two probes, two BNC cables, USB connecting cable, and software CD for Windows 2000/XP/VISTA/7/8/10.

Channels:                          Two

Band width:                       100 MHz

Sample rate:                      Dual CH 500 MS/s

                                             Single CH 1 GS/s

Operating modes:             CH1, CH2, XY

Input:

Input coupling:                  DC, AC, GND

Input impedance:              1 MΩ ±2% ll 10 pF ±5 pF

Input voltage:                     0 – 400 V DC or ACpp

Vertical:

Deflection coefficient:      2 mV/div. – 10 V/div.

Precision:                           ± 3%

A/D converter:                   8-bit resolution

Horizontal:

Time-base coefficient:     2 ns/div. – 100 s/div.

Sampling range:               0.5 S/s – 250 MS/s

Precision:                           100 ppm

Measuring mode:

Automatic measurement:  Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, overshoot, pre-shoot, rise time, fall time, +width, -width, +duty, -duty, delay A-B (rising), delay A-B (falling), freq, period, FFT

Maths functions:               +, -, *, /, FFT

Trigger:

Trigger type:                       Edge, Video, Pulse, Slope

Trigger modes:                  Auto, Normal, Single

Trigger detection:              Sample, peak detect, average

Interfaces:

Memory size:                     10000 measurements

Interface:                            USB 2.0, VGA, LAN

Power supply:                   100 – 240 V, 50/60 Hz

General data:

Display:                                TFT colour screen, 8 inches, 800 x 600 pixels, 65536 colours

Dimensions:                      340x155x70 mm³ approx.

Weight:                               1.8 kg appro
