Aukštos įtampos maitinimo šaltinis 5 kV (230 V, 50/60 Hz)



Informacija apie prekę Prekės kodas 1003310 [U33010-230] Svoris 4 kg Išmatavimai 35.6 x 20.3 x 22.9 cm Ženklas 3B Scientific Informacija apie prekę Prekės kodas 1003310 [U33010-230] Svoris 4 kg Išmatavimai 35.6 x 20.3 x 22.9 cm Ženklas 3B Scientific Informacija apie prekę Prekės kodas 1003310 [U33010-230] Svoris 4 kg Išmatavimai 35.6 x 20.3 x 22.9 cm Ženklas 3B Scientific Informacija apie prekę Prekės kodas 1003310 [U33010-230] Svoris 4 kg Išmatavimai 35.6 x 20.3 x 22.9 cm Ženklas 3B Scientific

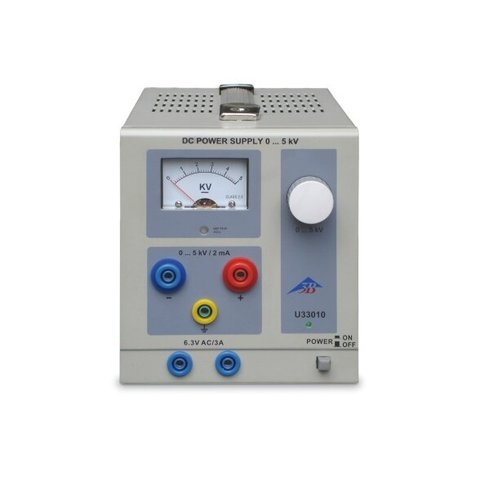

High Voltage Power Supply 5 kV (230 V, 50/60 Hz)

Universally applicable, floating, high-voltage power supply with built-in, high voltage resistant transformer to supply the heater voltage for electron tubes. Continuously adjustable high voltage, safe to touch, with passive current limitation and analogue voltage display. Unit poles can be connected to protected earth, but it is not center tapped.
Output voltage harmless to touch (ISC max. 2 mA)
Safety transformer conforming to EN 61558-2-6
Safe isolation between power supply and output circuits


Specifications:
High voltage output: 0-5000 V DC, max. 2 mA, max. 5 W Heater voltage output: 6.3 V AC, max. 3 A High voltage resistant up to 6 kV Overload protection: Primary: fuse Secondary: current-limiting resistors Connections: 4 mm safety sockets High-voltage display: Analogue Dimensions: 235x130x155 mm³ approx. Weight: 3.5 kg approx.
