DC maitinimo šaltinis, 32 V, 20 A (230 V, 50/60 Hz)

Informacija apie prekę Prekės kodas 1012857 [U11827-230] Svoris 3.5 kg Ženklas PeakTech

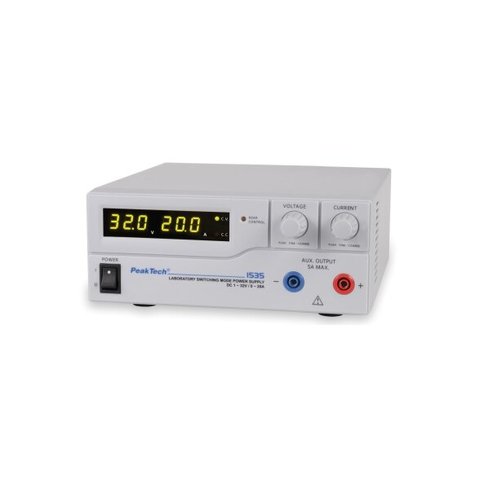

DC Power Supply, 32 V, 20 A (230 V, 50/60 Hz) High-quality switched-mode power supply in space-saving housing with intelligent control of fan speed to ensure safe and quiet operation. Simple, precise and fast adjustment of voltage and current levels with dual-function rotary knobs for coarse and fine adjustment. Adjustable current limiting in open circuit. Three user-definable stored configurations for voltage and current limiting make it easy to recall frequently used settings. Full remote control of voltage and current plus output which can be turned on and off.

Specifications:
Display 3-digit, 15 mm, green LED Output voltage 1 – 32 V DC Output current: 0 – 20 A (output with pole terminals on rear) 0 – 5 A (output with 4-mm safety sockets on front) Max. power output: 640 W Residual ripple: 5 mV rms Efficiency: > 87.0 % Dimensions: 200x90x255 mm Weight: 2.6 kg
