Elektroninis vamzdis su jungimo moduliu, R modelis

Informacija apie prekę Prekės kodas 1019957 [U8557540] Svoris 0.717 kg Ženklas 3B Scientific Teltron
Fine Beam Tube on Connection Base R Experiment Topics:
Deflection of electrons in a closed circular path inside a magnetic field. Determination of specific charge of an electron e/m.

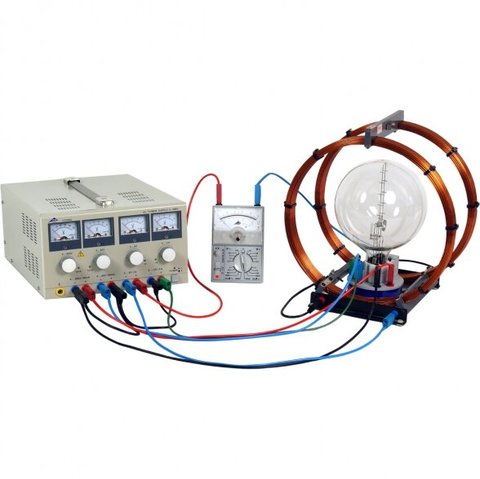

For examining the deflection of electron beams in a uniform magnetic field using a pair of Helmholtz coils (1000906) and for the quantitative determination of the specific charge of the electron e/m. Glass vessel with integrated electron beam system, consisting of an indirectly heated oxide cathode, a Wehnelt cylinder and a perforated anode, in neon residual gas atmosphere with precisely set gas pressure and with integrated measurement marks for parallax-free determination of the diameter of the fine beam. Gas atoms are ionized along the electron path and produce a sharply defined, visible fluorescent beam. Tube mounted on base with colour coded connectors.
Gas filling: Neon
Gas pressure: 1.3x10-5 hPa
Filament voltage: 5 – 7 V DC
Filament current: < 150 mA
Wehnelt voltage: 0 – -50 V
Anode voltage: 200 – 300 V
Anode current:
