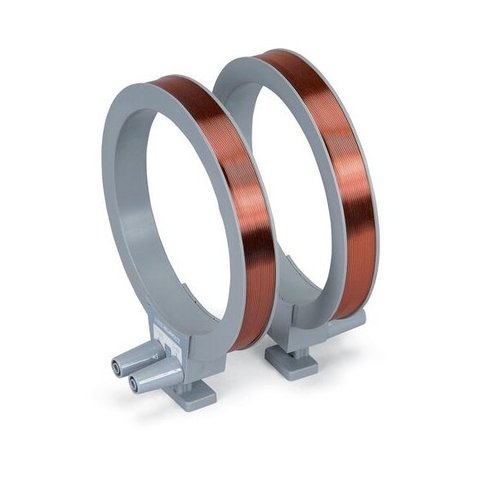

Helmholtz ritės, S modelis



Informacija apie prekę Prekės kodas 1000611 [U185051] Svoris 1.415 kg Išmatavimai 27.9 x 20.8 x 7.9 cm Ženklas 3B Scientific Teltron

Helmholtz Coils S

Pair of Helmholtz Coils for generating a uniform magnetic field perpendicular to the axis of the Teltron S series tube. Teltron Tube Holder S allows the coils to be configured in the Helmholtz geometry or at variable distances to produce magnetic fields aligned vertically, or coaxial, with respect to the tube axis. The maximum field strength generated by the coils (~ 10 mT) is approximately 300 times weaker than that produced by an MRI machine (~ 3T), which are known to be safe for use by people with medical implants such as pacemakers.

Specifications: Number of turns: 320 Coil diameter: 138 mm Load rating: 1.0 A (Continuous operation) 1.5 A (Short-term operation) Effective Impedance: approx. 6.5 Ω Terminals: 4 mm safety sockets Max. field strength: approx. 9 mT
