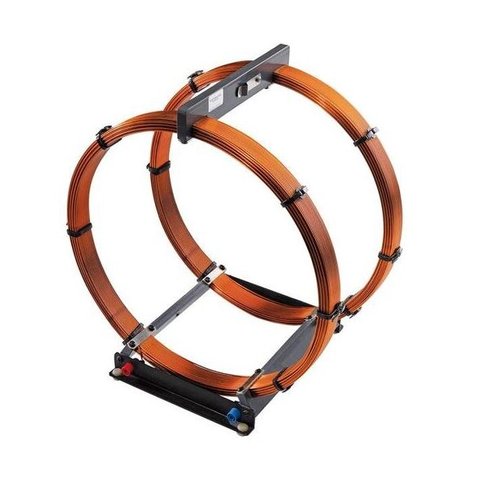

Helmholtzo ritės, d=300 mm



Informacija apie prekę Prekės kodas 1000906 [U8481500] Svoris 5.15 kg Išmatavimai 37.1 x 38.1 x 28.2 cm Ženklas 3B Scientific

Helmholtz Coils, 300 mm

Helmholtz coils are used to produce a homogeneous magnetic field. Experiments on induction and electron deflection can be performed with the Rotary Frame with Flat Coil and the Fine Beam Tube. The coils can be used in parallel or in series and feature a spring clip on the cross bar to mount a Hall Sensor for measurements of the magnetic field. The maximum field strength generated by the coils (~ 4 mT) is approximately 750 times weaker than that produced by an MRI machine (~ 3T), which are known to be safe for use by people with medical implants such as pacemakers.

Specifications:
Coil diameter: 300 mm approx. Coil spacing: 150 mm Number of turns per coil: 124 Enamelled copper wire thickness: 1.5 mm DC resistance: 1.2 Ohms each Maximum coil current: 5 A Maximum coil voltage: 6 V Maximum flux density at 5 A: 3.7 mT
