Išcentrinis siurblys



Informacija apie prekę Prekės kodas 1002575 [U10005] Svoris 0.948 kg Ženklas 3B Scientific

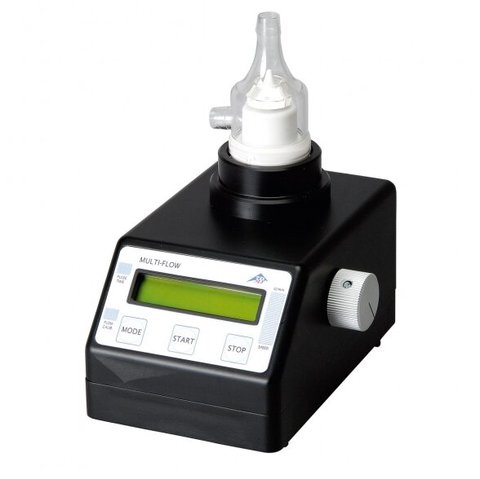

Centrifugal Pump

Pump for transporting liquids at a constant flow velocity which can be regulated continuously to any value and intended for the investigation of flow phenomena with laminar flow profiles. The pump has 3/8" plug-in connectors for insertion into the Doppler Apparatus (U10001) or Arm Phantom Set (UHH-ARM). The display can be switched to show either speed or flow. The display of the flow can be calibrated to match the flow pressure. For Doppler sonographic experiments using a so-called arm phantom to simulate a real arm, the pump can be set to provide a pulsing flow (to simulate a heart beat) with a variable pulse frequency. This allows ultrasonic signals to be obtained which are typical for vascular diagnosis.

Specifications:
Connectors: 2 x 3/8" Maximum flow rate: 6 l/min Display: LCD Mains voltage: 90 to 230 V (50/60 Hz)
