Pasipriešinimo tiltas

Informacija apie prekę Prekės kodas 1009885 [U8551002] Svoris 1.087 kg Ženklas 3B Scientific

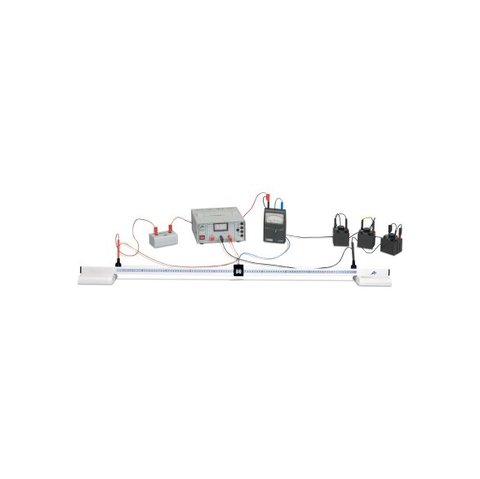

Resistance Bridge Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages.
It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.
Dimensions: approx. 1300x100x90 mm³
Rail: approx. 30x30 mm²
Scale: 0 – 1000 mm
Scale divisions: mm
Resistance wire: 1 m, 0.5 mm dia.
Material: NiCr
Resistance: 5.3 Ω
Connection: 4 mm safety jacks
Maximum permissible voltage: 8 V
Maximum permissible current: 1.5 A
