SEK mechaniniai virpesiai ir bangos - rinkinys (115 V, 50/60 Hz)

Informacija apie prekę Prekės kodas 1018476 [U61020-115] Svoris 1 kg Išmatavimai 42.7 x 31.2 x 7.5 cm Ženklas 3B Scientific
SEK Mechanical Oscillations and Waves (115 V, 50/60 Hz) Note: The 1018476 SEK Mechanical Oscillations and Waves is for operation with a mains voltage of 115 V (±10%), and the 1016652 set is for operation with a mains voltage of 230 V (±10%).

Large equipment set for carrying out 23 fundamental experiments on the properties of mechanical oscillations and waves. Stored in a tough Gratnell tray with foam inlay featuring recesses moulded to the shape of the apparatus and covered by a transparent lid. Includes CD with experiment instructions.

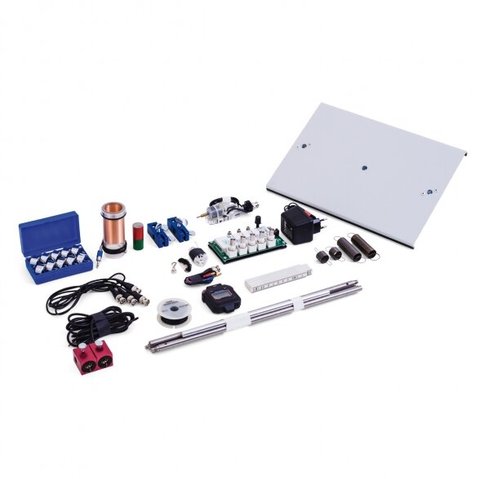

Contents:
1 MEC control unit
1 Plug-in power supply
2 Dynamic force sensors
1 Eccentric axle motor
1 Induction coil
1 Stopwatch
4 Coil springs
1 Set of 10 weights, 50 g
1 Base plate
1 Cross-strut
2 Stand rods with external threads
2 Stand rods with external and internal threads
2 Double clamps
1 Magnetic hooks
1 Bar magnet
1 Rubber cord
1 Roll of twine
1 Thread eyelet
1 Squirrel cage ring
1 Ruler 2 BNC cable, 1 m
1 BNC/4-mm cable

Includes instruction for 23 experiments on mechanical oscillations and waves
Determining spring constants (2x) Oscillations of a spring pendulum * Oscillations of two “identical” spring pendulums  * / ** In-phase and 180° out-of-phase oscillations of two “identical” spring pendulums  * / ** Excitation of a motionless spring pendulum by a moving one * / ** Superposition of the oscillations of two spring pendulums * / ** Spring pendulums connected in line * / ** Spring pendulums connected parallel to one another * / ** Intrinsic oscillation of a spring pendulum * Types of oscillation for a coil spring pendulum * String pendulums (2x) Seconds pendulums Galileo's interrupted pendulum Damped oscillations of string pendulums (2x) * Standing waves along a rope (2x) * Reflection of waves along a rope * Speed of propagation of waves along a rope (2x) * Oscillation of strings *
Dual-channel oscilloscope (for experiments marked *
e.g. 1017264 USB Oscilloscope 2x50 MHz

Analogue Multimeter for experiments marked **)
e.g. 1013526 Analogue Multimeter Escola 30
