Tesla transformatorius (100 kV)



Informacija apie prekę Prekės kodas 1000966 [U8496250] Svoris 4.95 kg Išmatavimai 71.1 x 33.0 x 27.9 cm Ženklas 3B Scientific

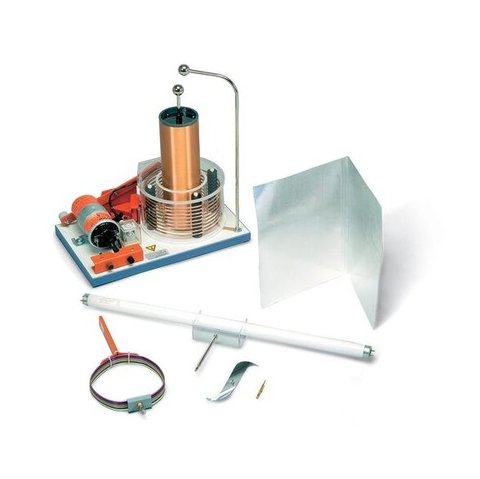

Tesla Transformer

Classic Tesla transformer for the generation of a safe high-frequency, high-voltage starting from approximately 100 kV. The well-conceived, open configuration of all components facilitates demonstration of both design and function. The apparatus is rendered shock proof on account of its extra low voltage operation.

Contents:
1 Tesla transformer, basic apparatus 1 Hand coil 1 Secondary coil 1 Spherical electrode, short 1 Spherical electrode, long 1 Needle electrode with spray wheel 1 Fluorescent tube 1 Reflector Specifications: No. of turns in the primary coil: 2 – 10 No. of turns in the secondary coils: 1150 Primary voltage: 20 V AC Secondary voltage: >100 kV Transformer: approx. 330x200x120 mm³ Secondary coils: approx. 240 mm x 75 mm dia. Two internal capacitors: C=0.022 µF and U=1600 DC/650 AC Weight: approx. 3 kg
