Teslametras, E modelis

Informacija apie prekę Prekės kodas 1008537 [U8533982] Svoris 0.18 kg Ženklas 3B Scientific

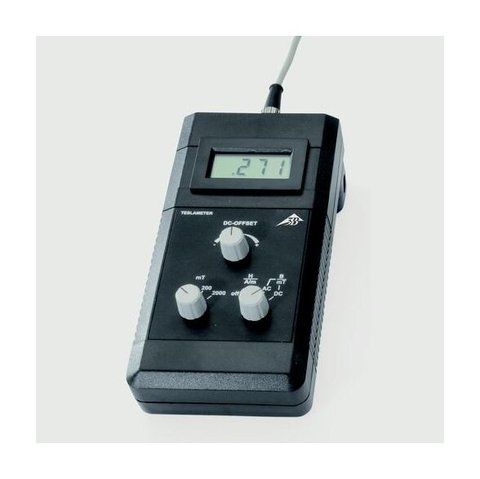

Teslameter E Hand-held meter for measuring magnetic flux density or magnetic field strength in conjunction with an Axial/Tangential Field Sensor or a Flexible Magnetic Field Sensor. The measurements are shown on a digital display and also converted into equivalent voltage outputs, which can be accessed from the analog output connection.

Specifications:
LCD display: 3½-digit, 10 mm high Power supply: Rechargeable 9-V block battery providing about 20 hours of operation Sensor connection: DIN socket Offset compensation: ±0.150 mT Measuring modes: C-B Flux B of uniform fields AC-B Flux B of alternating fields (1 Hz … 10 kHz) AC-H Field strength H of alternating fields (1 Hz … 10 kHz) Measuring ranges: Flux B: ±2.000/±20.00/±200.0/±2000 mT Field strength H: ±2.000/±20.00/±200.0/±2000 A/m Analog output: Connector: 4-mm socket Range: 0 … ±2 V
