„Thomson“ vamzdelis, S modelis



Informacija apie prekę Prekės kodas 1000617 [U18555] Svoris 0.71 kg Išmatavimai 35.1 x 28.2 x 22.1 cm Ženklas 3B Scientific Teltron

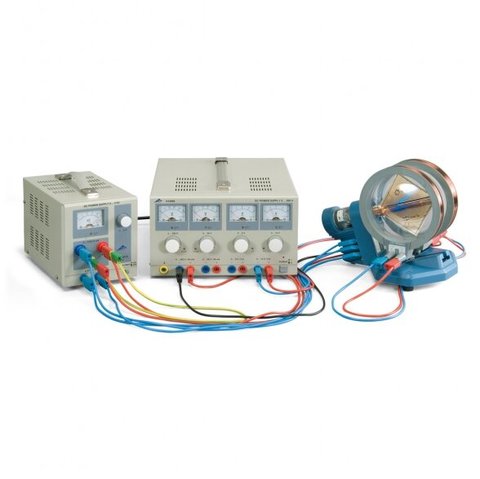

Thomson Tube S

High-vacuum electron tube with high-accuracy electron gun and ruled target phosphorescent screen. Determine the fundamental electron charge-to-mass ratio (e/m), study mean electron velocities using field cancellation, and explore electron optics using this tube. The electron beam trajectory can be manipulated using two methods: 1) deflection induced by the electric field of the built-in plate capacitor, or 2) magnetically using external Helmholtz Coils S (see Recommended).

Specifications
Max. filament voltage: 6.3 V AC
Max. anode voltage: 5 kV
Max. capacitor voltage: 500 V
Anode current: approx. 0.1 mA at 4 kV (anode)
.008m between tick marks on screen
