Bio-matavimo sąsaja

Informacija apie prekę Prekės kodas 1020602 [U8557660] Svoris 0.46 kg Išmatavimai 17.5 x 10.5 x 3 cm

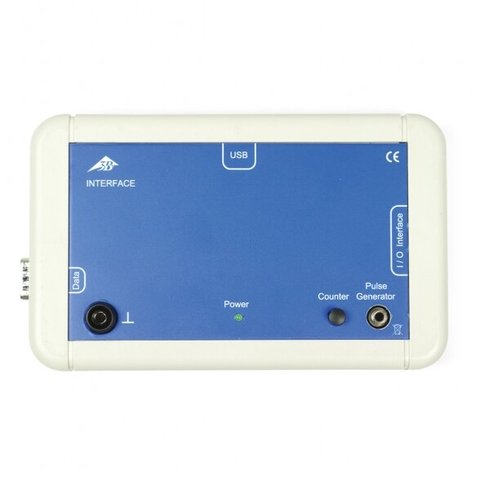

Bio-Measurement Interface

The bio-measurement interface is for measurement and control in electrophysiological
experiments with the bio-amplifi er. It operates in conjunction
with a computer via a serial USB interface. Driver and measurement software
are included with the equipment.

There is also a built-in fl oating, software-controlled pulse generator, which
acts as a stimulus generator in conjunction with the measurement chamber
for experiments on earthworms (P-1020601). The measurement software
outputs square pulses of variable amplitude and pulse width, which
can be used as single pulses or double pulses with varying intervals.

Power supply: +5 V, max. 200 mA via USB port
USB port: Type B socket
Connector for bio-amplifier: Sub-D plug, 15-pin
Connector for measurement
modules and sensors: Sub-D socket, 15-pin
Output for stimulus generator: 3.5-mm jack socket
Dimensions: approx. 175x105x30 mm3
Weight: approx. 335 g
