Deguonies dujų jutiklis (0 .. 100%)

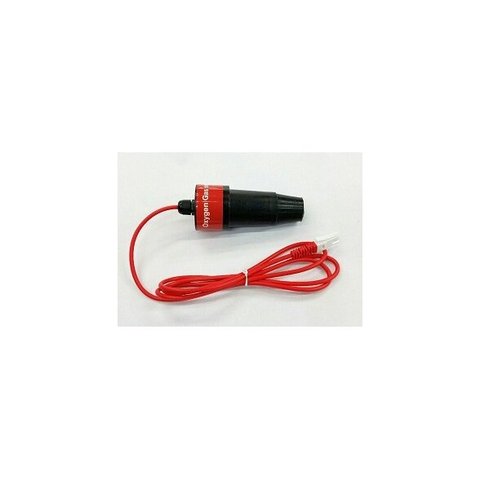

Oxygen Gas sensor The Oxygen Gas sensor BT59i measures the gaseous oxygen concentration in the range of 0 to 100 %. It uses an electrochemical cell, which contains a lead anode. The anode and cathode are immersed in an electrolyte. When oxygen molecules enter the cell, they get electrochemically reduced at the cathode. This electrochemical reaction generates a current that is proportional to the partial pressure of oxygen in the gas mixture. The current is measured across a resistance to generate a small voltage output. The voltage output is amplified to the 0 .. 5V output range.

The Oxygen Gas sensor has a limited operating lifetime of 5 years in open air.

Using the T-koppelstuk this sensor can for instance be used with the CO2-sensor.

The Oxygen Gas sensor can be directly connected to the analog BT inputs of the CMA interfaces.

Technical specifications of the sensor are described in its User's guide.
