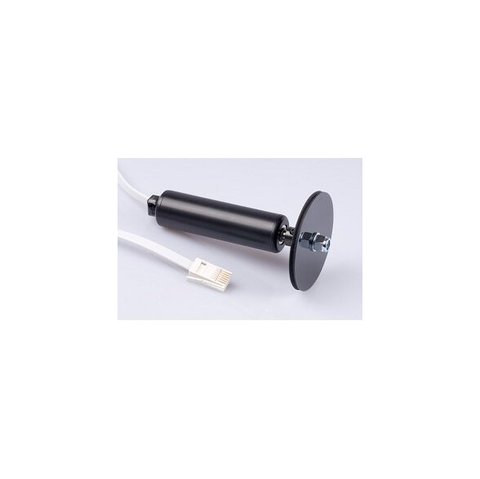

Kampo (pozicijos) jutiklis (0.. 270°) su jutiklio laidu

Angle position sensor The Angle position sensor contains a potentiometer with a pulley to attach a string to. The sensor is suitable for detecting angles, and (small) displacements. By a displacement of a string, the potentiometer is rotated and the output voltage is adapted.
The range of the sensor is 270° of turn or a displacement of about 140 mm.

The Angle position sensor can be used in:
• Studying the swing of a pendulum
• Measurements of small displacement
• Measurement of positions of the light sensor in interference and diffraction patterns.

The Angle position sensor can be directly connected to analog BT inputs of the CMA interfaces.

Technical specifications of the sensor are described in its User's guide.
