pH jutiklis (0 .. 14) be pH elektrodo

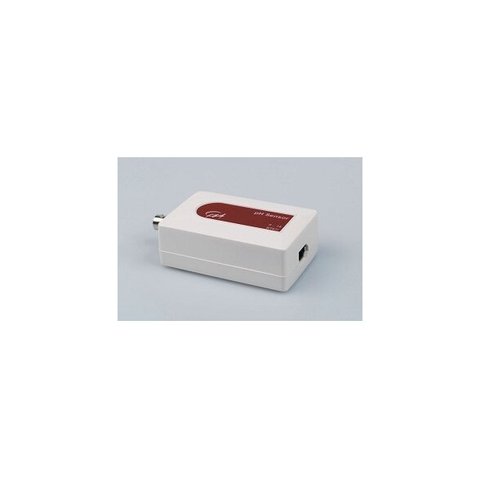

pH sensor (excl. electrode) The pH Sensor BT61i is a general-purpose pH measurement system that allows measuring the degree of acidity/pH value of a solution in the range between 0 and 14. The sensor consists of a pH amplifier and pH electrode. The electrode is connected to the amplifier by means of a coax cable and a BNC connector. The pH Electrode (031) is not delivered with the pH sensor BT61i and has to be purchased separately.

The pH sensor can be used for various experiments in biology, chemistry and environmental science such as:
• Measuring pH values of different acids and bases,
• Acid-base titration experiments,
• Monitoring pH during chemical reactions,
• Investigating of water quality in streams and lakes.

The pH sensor can be directly connected to the analog BT inputs of the CMA interfaces.
Attention: The sensor cable BT - IEEE1394 needed to connect the sensor to an interface is not supplied with the sensor and has to be purchased separately (CMA Art. Nr BTsc_1).

Technical specifications of the sensorare described in its User's guide.
